⚠️ WARNING: This article is intended for qualified professional electrical installers ONLY. System owners (consumers) should NOT follow these instructions. Improper installation or handling of electrical equipment can result in serious injury, fire, or damage to your system and loss of warranty. If you are a system owner and need assistance, please contact your Emaldo® installer directly. |
Always make sure you have the latest installation manual available.
You can find it here:

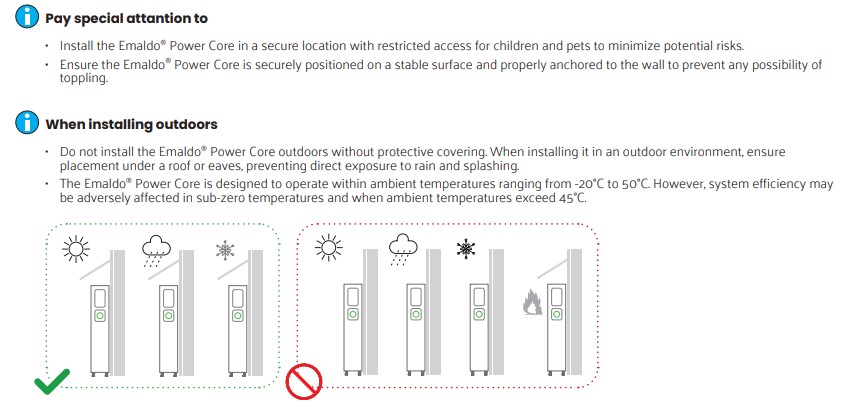

The Emaldo® Power Core is IP54 rated and can be installed both indoors and outdoors. Outdoor installation should be done under eaves overhang.
Step 1
Make sure the installation location allows for enough free space on all sides of the Emaldo® Power Core, except for the backside, which must be secured to the wall.
For installations without battery expansion cabinets, it is advisable to position the Emaldo® Power Core to the right side on the designated installation point. This arrangement facilitates potential expansion of battery cabinets on the left side in the future.
Min. 300 mm to the top.
Min. 500 mm to the sides.
Min. 1200 mm free space in front.

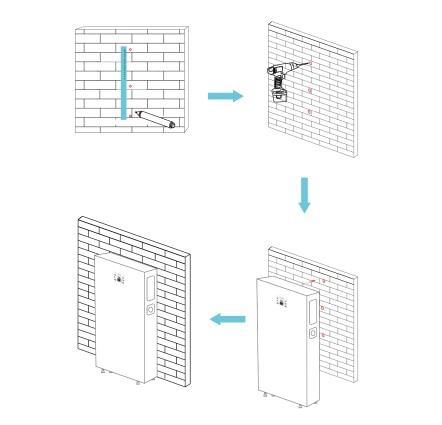

Step 2
Use a line marking template to determine drilling locations.
Level the hole location with a leveling instrument.
Mark the locations with a marker.
Step 3
Use an electric drill to create installation holes for M6 bolts
at the marked points.
Step 4
Align the cabinet with the installation holes.
Tap expansion bolts into the wall holes with a hammer.
Install nuts, including flat washers.
Tighten the nuts securely using a wrench.
