⚠️ WARNING: This article is intended for qualified professional electrical installers ONLY. System owners (consumers) should NOT follow these instructions. Improper installation or handling of electrical equipment can result in serious injury, fire, or damage to your system and loss of warranty. If you are a system owner and need assistance, please contact your Emaldo® installer directly. |
Always make sure you have the latest installation manual available.
You can find it here:
Remove the pin protection nutt in the cabinet where you want to install the Emaldo® Power Box.

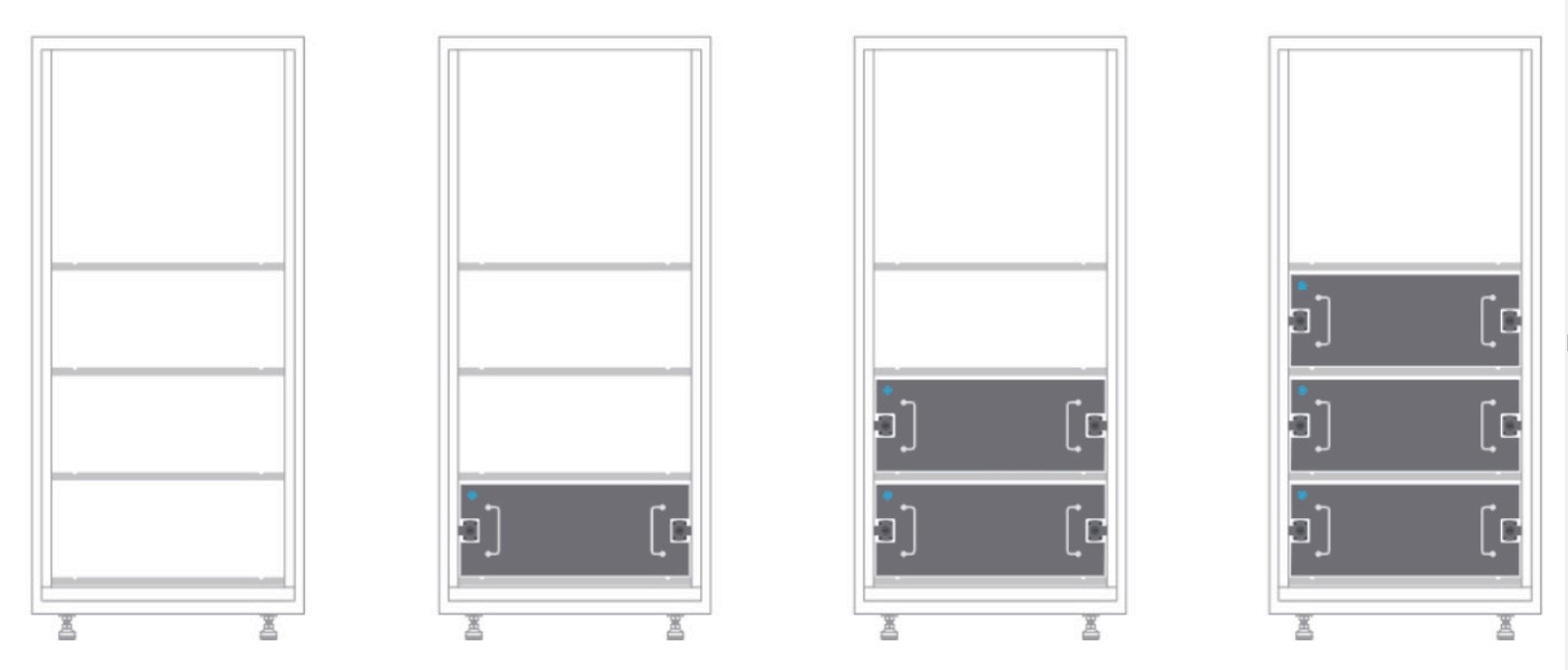

Starting from the bottom, securely grip the top handle of the Power Box using both hands or with assistance from two individuals.
Align the Power Box with the SlideON guide rails in cabinet, release the handle, make any necessary adjustments to its position push it in place.
Turn the safety lock on both sides of the Power Box to secure it in place.

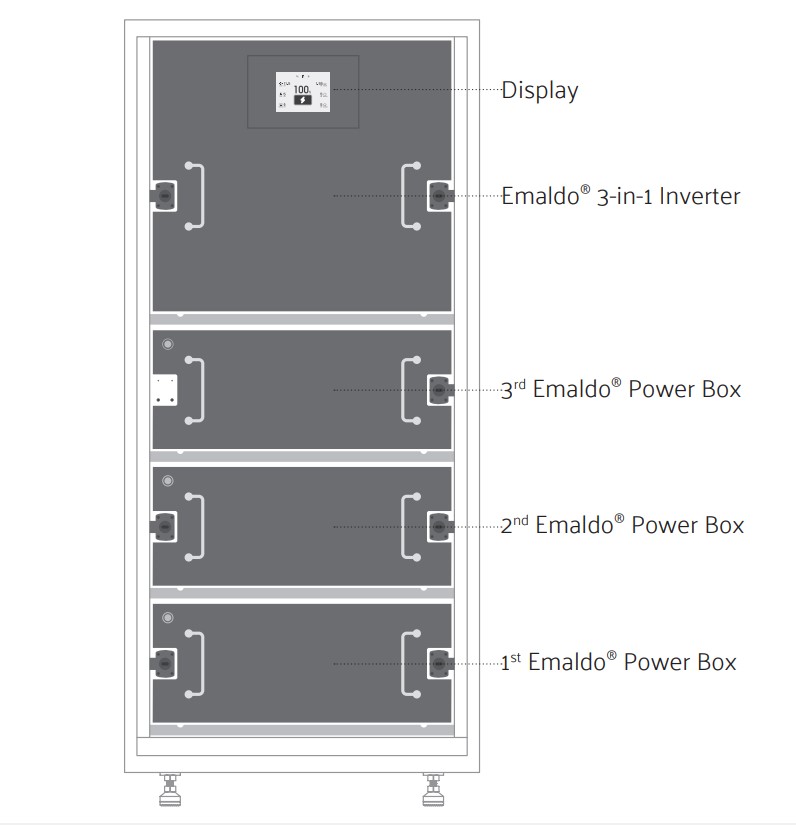

Proceed to install the second and third Power Box.
