⚠️ WARNING: This article is intended for qualified professional electrical installers ONLY. System owners (consumers) should NOT follow these instructions. Improper installation or handling of electrical equipment can result in serious injury, fire, or damage to your system and loss of warranty. If you are a system owner and need assistance, please contact your Emaldo® installer directly. |
Always make sure you have the latest installation manual available.
You can find it here:

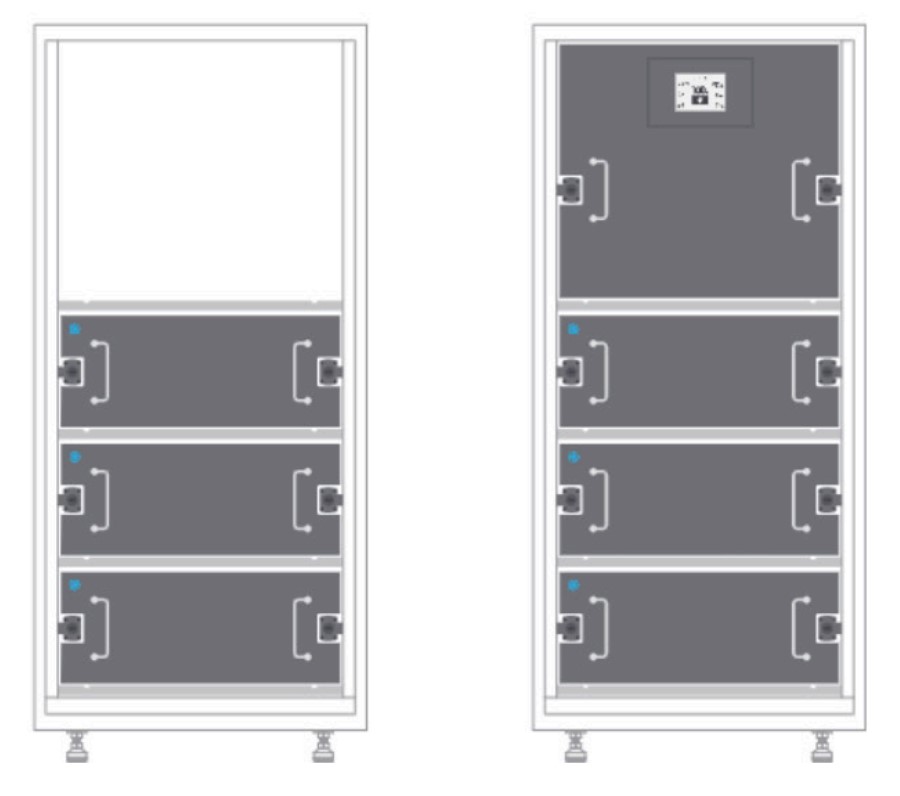

Starting from the bottom, securely grip the top handle of the Emaldo® 3-in-1 inverter using both hands or with assistance from two individuals.
Align the Emaldo® 3-in-1 inverter with the SlideON guide rails in cabinet, release the handle, make any necessary adjustments to its position push it in
place
Turn the safety lock on both sides of the Emaldo® 3-in-1 inverter to secure it in place.
