⚠️ This guide will teach you how to activate and setup Peak Shaving in the Emaldo® app.

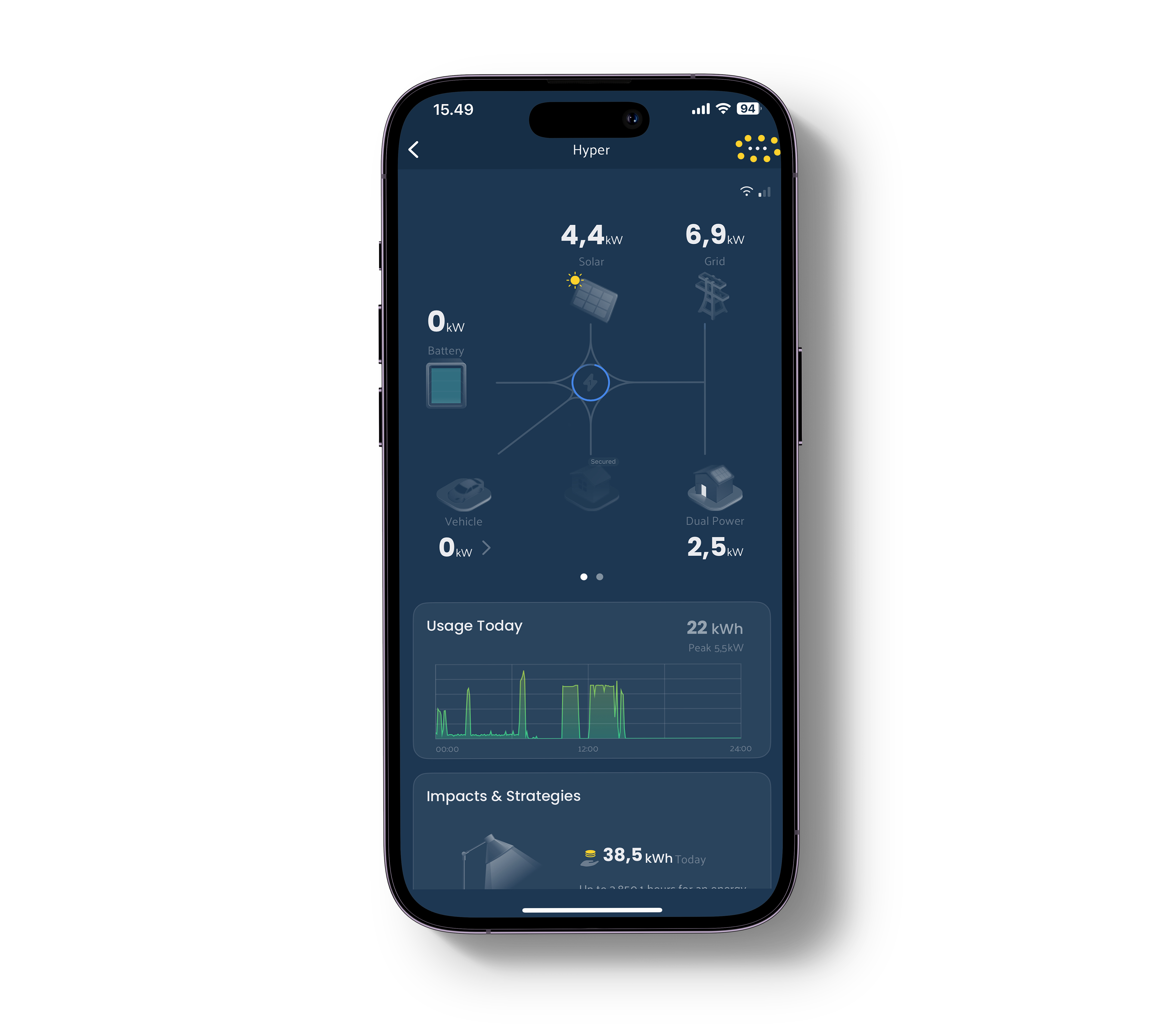

Tap the Realtime Power card on the home page.
Tap in the upper right corner of the screen.

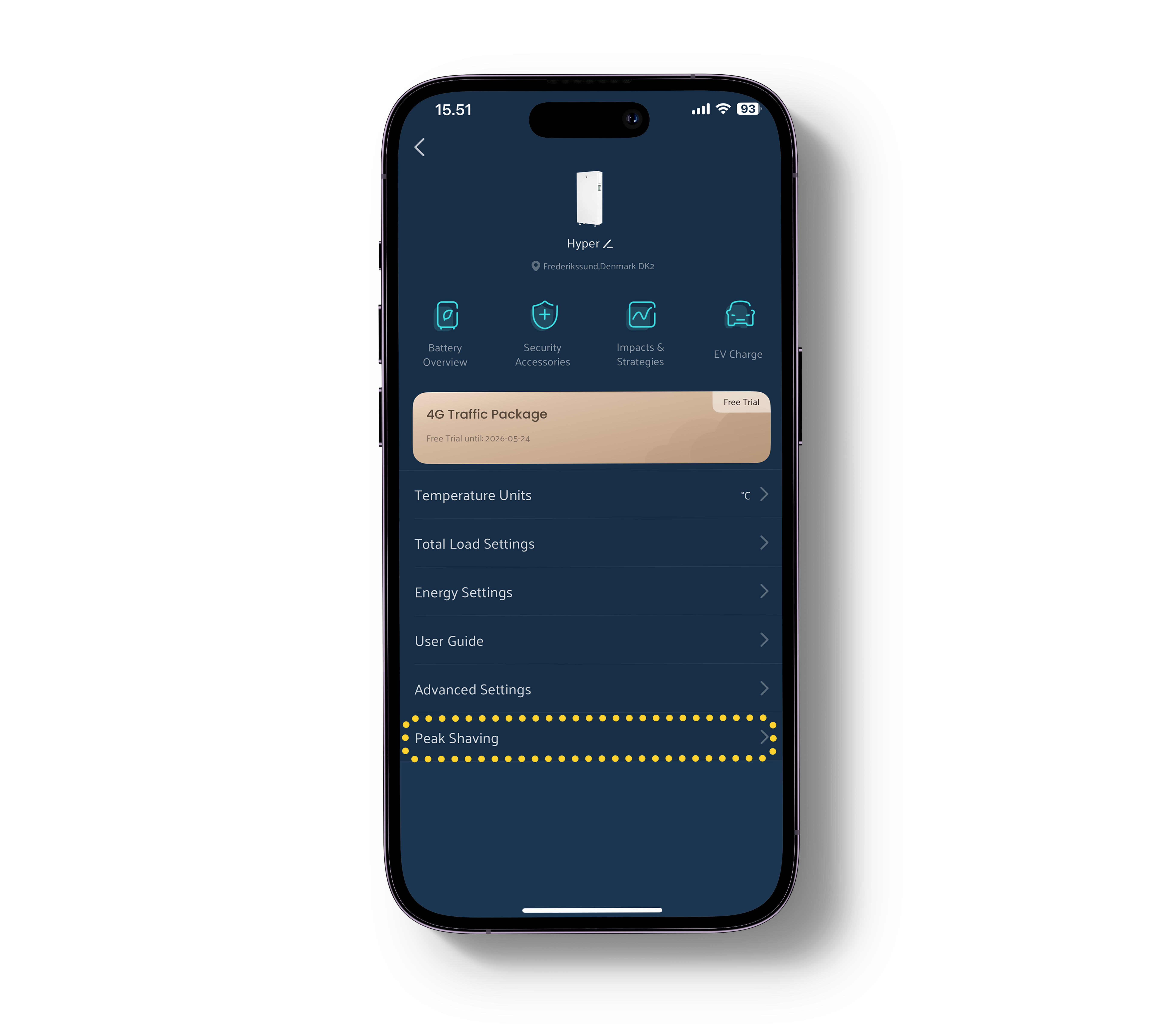

Tap Peak Shaving.
Toggle Peak Shaving on to activate the feature.

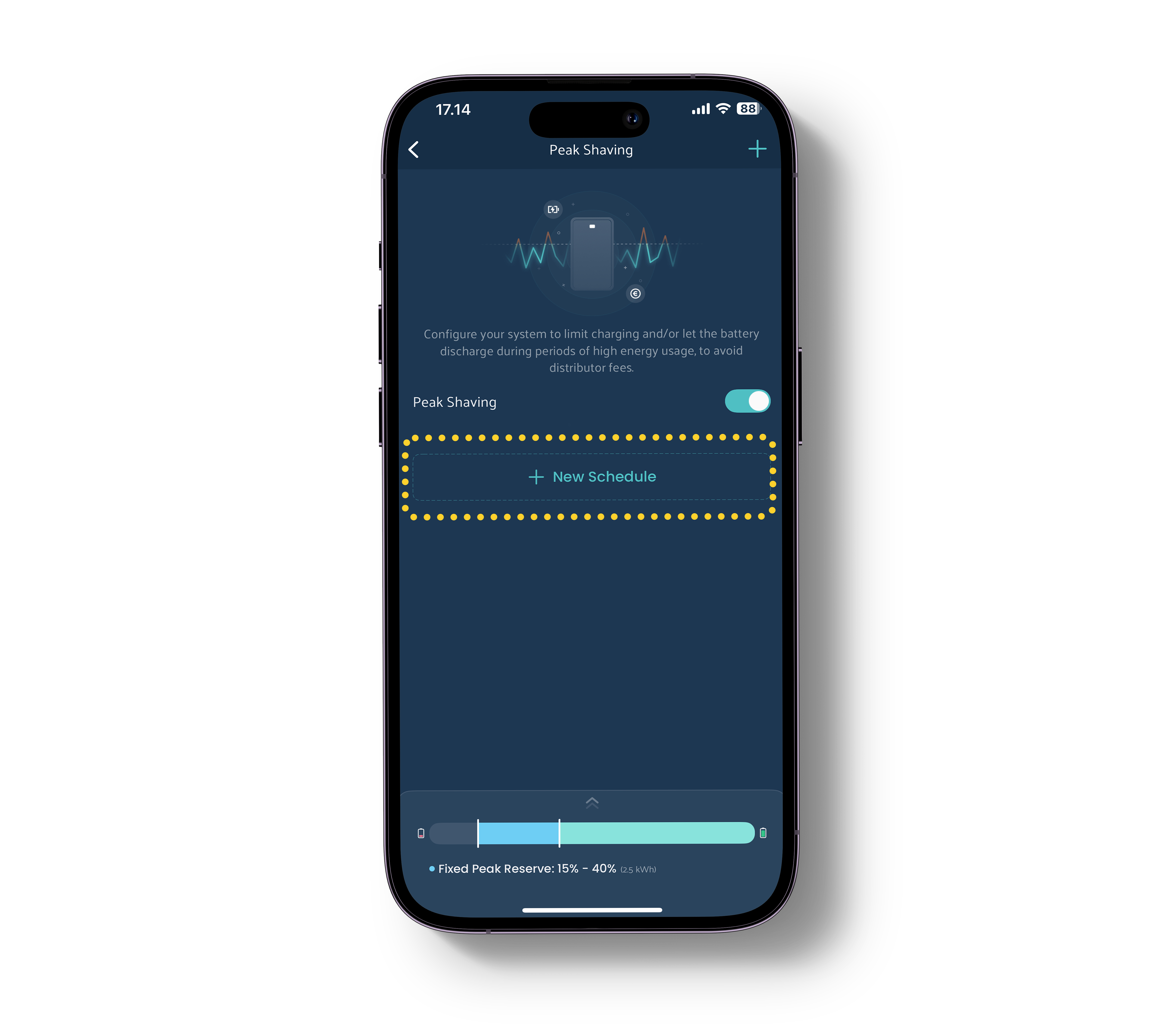

Tap New Schedule to setup a new ruleset for when your system should enable peak shaving.
If you already see an existing schedule, either tap the to edit it or the
to delete it.

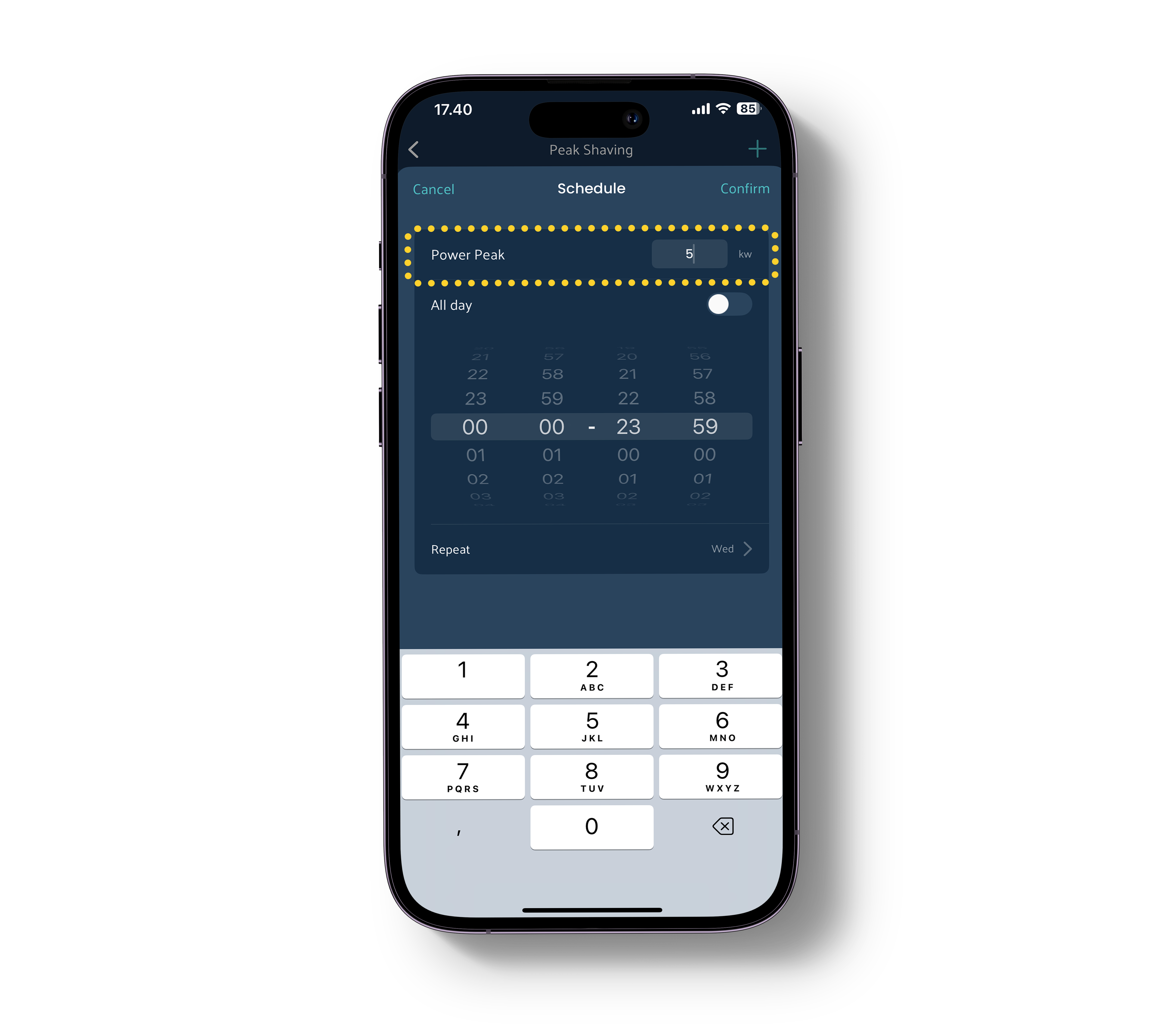

Define the maximum kilowatts allowed at any time.
⚠ Check your grid operator’s online portal or bill for the correct value. Adjust for high-consumption devices, like a sauna or jacuzzi, to avoid unnecessary charges.
Choose when peak shaving is active. Toggle All Day to run it 24/7, or set start and end times for specific hours. Then select which days it should apply.
⚠ Some electricity distributors use the same peak thresholds all day. Others apply lower thresholds at night. Check your distributor’s website or contact their support to confirm.
Set the UPS Reserve by moving the slider left and right.
⚠ This is the emergency reserve, and will only be used as a last resort. To preserve the health of your battery this should not be set lower than 10%.
Set the Fixed Peak Reserve by moving the slider left and right.
⚠ This portion of energy is locked and only discharged during a Peak Shaving event. Set it above 10% to activate.
Energy reserved here won’t be used for other purposes. A higher setting may reduce your Grid Rewards earnings. We recommend around 20%.

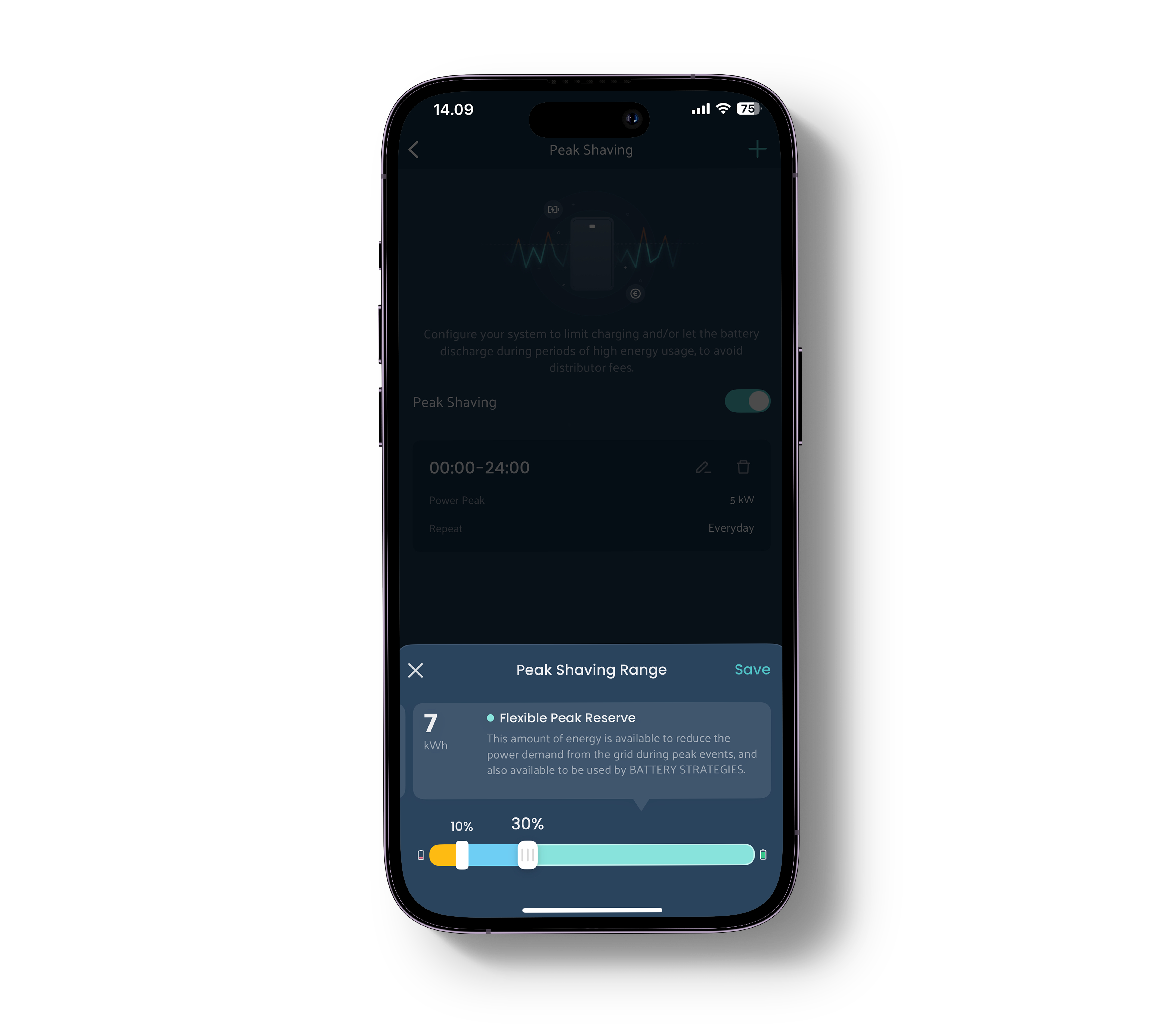

⚠ Last, but not least, the Flexible Peak Reserve represents the energy that can be used for Grid Rewards, AI mode and Schedule mode. It’s only used for Peak Shaving if needed.
Flexible Peak Reserve is the remaining battery capacity that is not allocated as either UPS Reserve or Flexible Peak Reserve.
