⚠️ This guide will teach you how to deploy and configure your Emaldo® device through the Emaldo® app after it has been factory reset (hold the IoT button for 10 seconds).
Before you begin this guide, make sure you have:
- Access to your Emaldo® installation (stand next to the unit)
- The Emaldo® app installed on your phone and logged in
- Your network name and password ready
- Bluetooth enabled on your phone

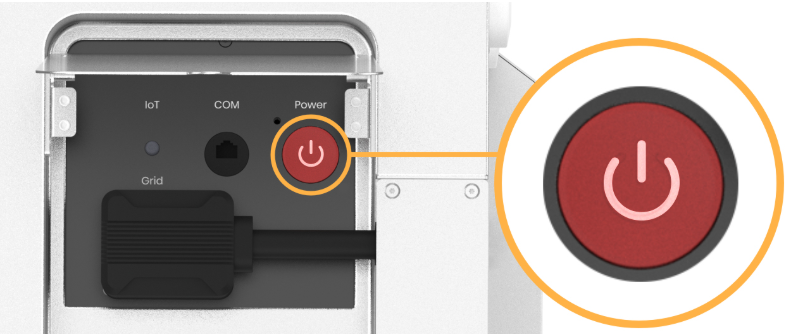

The Emaldo® device powered ON — confirm by checking that the Power button is lit.
ON
OFF

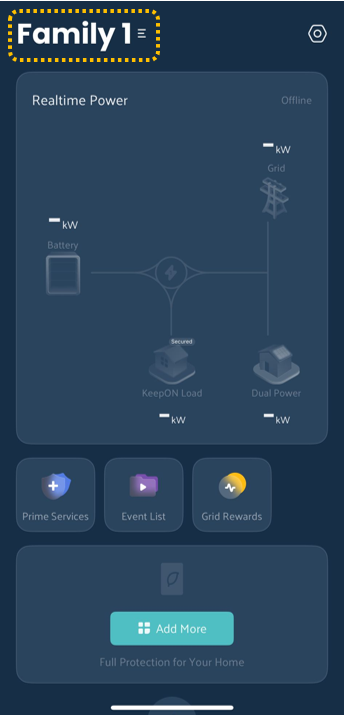

Tap on the Family Name and select the Family that the installer previously used to commission your system.
This step is important to retain your historical statistics, previous Grid Rewards registration, and any existing 4G subscription.
Mark the correct Family you want to pair the unbound device with.

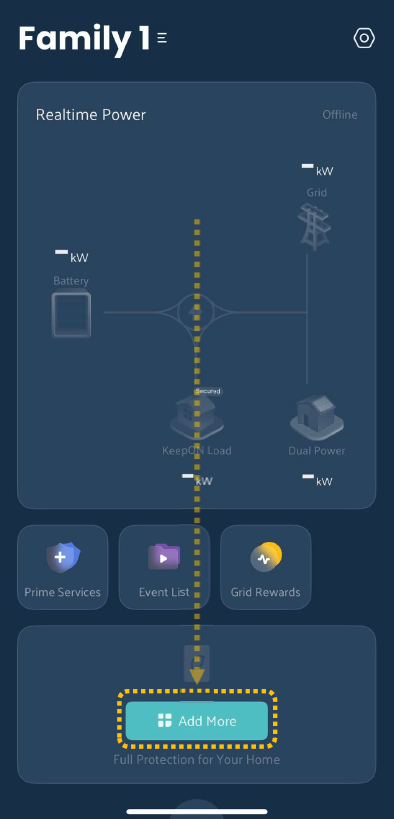

Tap “Add More” on the home page after selecting the correct Family.

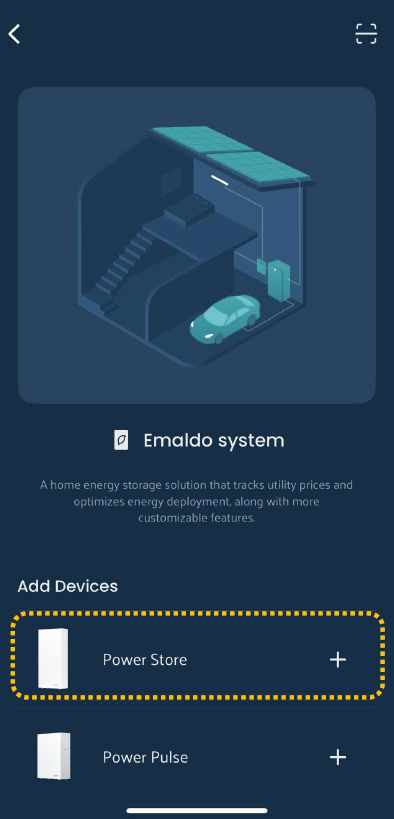

Make sure Bluetooth is enabled on your phone, then Select your installed product.

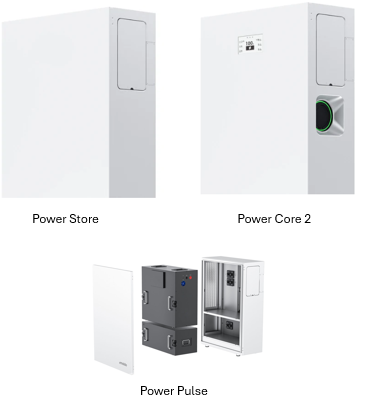

If you are unsure which product you have, compare the image below with your installed Emaldo® unit to determine the correct model, and select it from the “Add Devices” list.
Your phone’s Bluetooth will now search for the device’s Bluetooth and pair them together when you tap your Device ID that appears in the list at the bottom.
You should hear a beep when the pairing is successful.

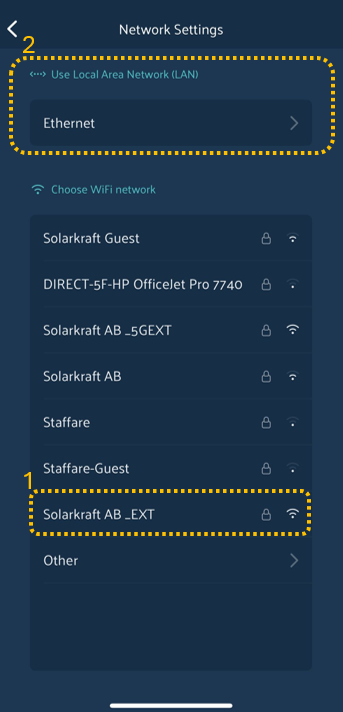

Select your preferred Network Connection.
If you have a Internet-wired Emaldo® device, choose the top option (2) “Use Local Area Network (LAN)”.
If your device is only connected via Wireless Network (Wi-Fi), select your home Wi-Fi network and enter the password (1).
If the unit fails to connect, try activating a Hotspot from your phone settings.
Your phone’s Hotspot will appear in the list above — connect to it. If this works, it is likely that there is interference from the home network.

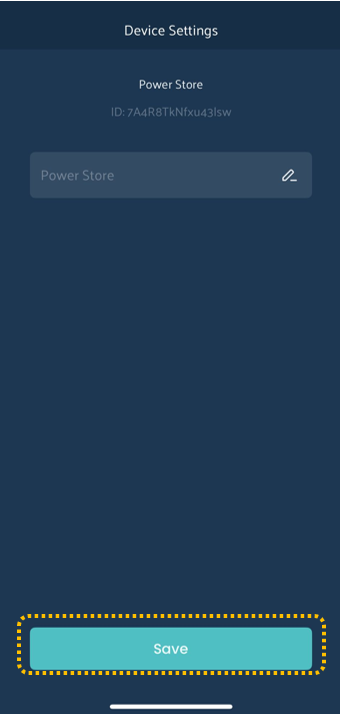

Tap "Save" or Rename the device if you wish, then tap “Save.”

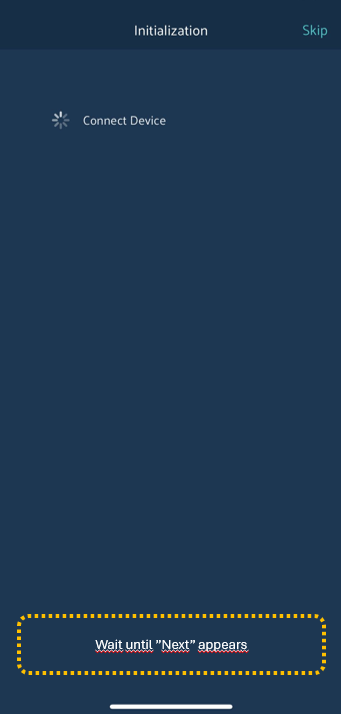

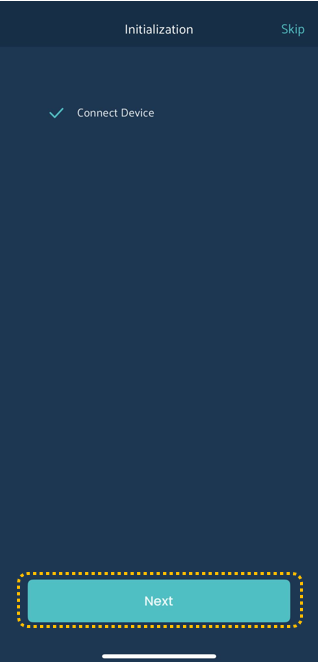

Wait until “Next” appears and a blue/turquoise checkmark is shown next to “Connect Device.”
Tap "Next"

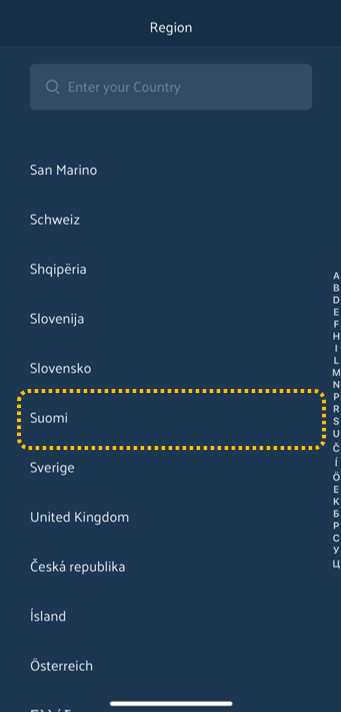

Choose the correct Country.

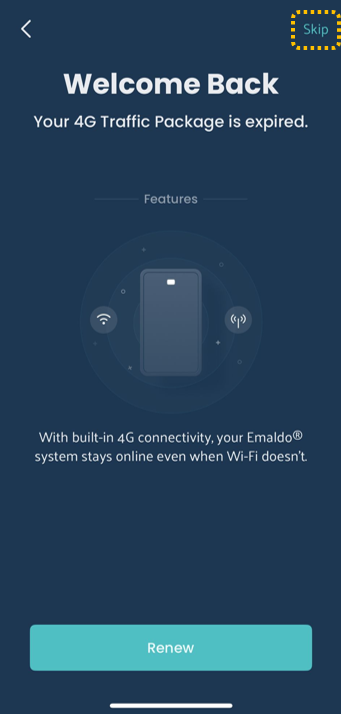

Choose whether to sign up for a 4G subscription or tap “Skip” to proceed.

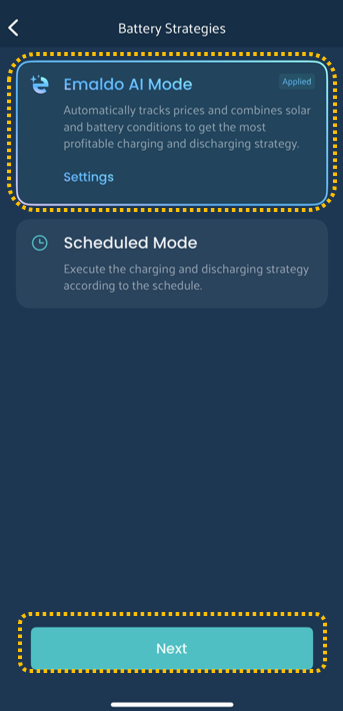

Select the mode for your system.
Recommended: Emaldo® AI Mode

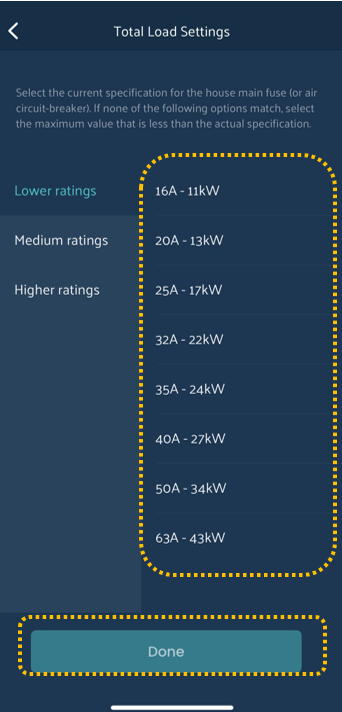

Select the main fuse size for your house.
You have now commissioned and configured your device to the network and completed all settings.
You should now see values displayed on the main page of your app.
Please note: Your system may begin updating as soon as the device establishes a network connection (depending on how long it has been offline).
Do not turn off the system during the first hour after connection.
Done✅
